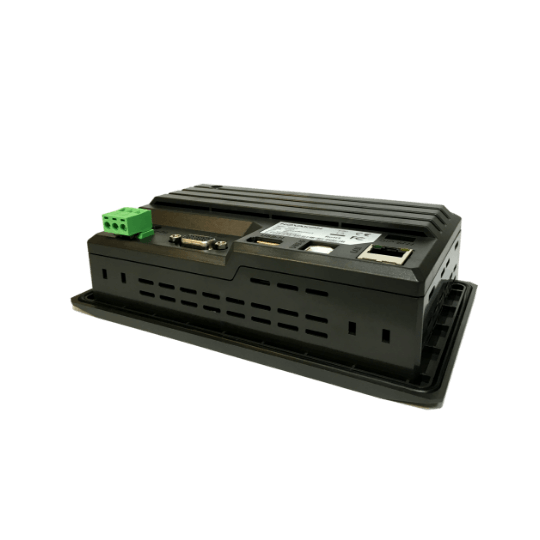

| Model | NK03 |
|---|---|
| Type | NK03-P |
| Display type | 3.5″ TFT |
| Resolution | 320 X 240 |
| Display area | 70.08 mm x 52.56 mm |
| Color depth | 16.7M |
| Backlight type | LED |
| Brightness | 300 cd/m² |
| Backlight lifetime | 20,000 hours |
| Viewing angle (H°/V°) | 140/130 |
| Contrast | 500:1 |
| Dimming | 20 levels |
| Touch panel | – |
| CPU | ARM9 ( 400 MHz ) |
| Flash memory | 128M Bytes NAND Flash |
| DRAM | 128M Bytes |
| FRAM (non-volatile) | 8K Bytes |
| RTC | Yes |
| COM1 | 1 x RS232, 1 x RS422/485 |
| COM2 | – |
| COM3 | – |
| Ethernet | – |
| USB | 1 x Host, 1 x Device |
| Memory card | – |
| Power supply voltage | 19.2 ~ 28.8V, Isolated Power |
| Power consumption | 6? |
| Operation temperature | 0 ~ 50°C |
| Storage temperature | -20 ~ 60°C |
| Humidity | 10% ~ 90% (non-condensing)@40°C |
| Construction | Plastic |
| Waterproof (Front) | IP65 |
| Mounting | Panel Mount |
| Cut-out | 161(W) mm x 93.5(H) mm |
| Weight (Net) | 0.33 kg |
| Battery | CR2032 Replaceable |
| ESD Protection | – |
| Certification | CE/FCC (EN 61000-6-4, EN 61000-6-2) |
| Accessories | – |
| System Support | Linux Kernel 2.21 |
| Remark | Specifications are subject to change without prior notice |
| Dimension | 178(W) mm x 107.3(H) mm x 49.5(D) mm |
| Software Option | iFace-Designer® Runtime |
| Brand | Chipsee |
|---|
