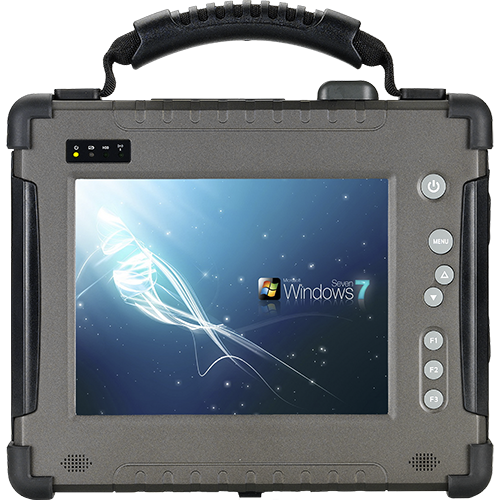

Display Specifications
| Size | 8.4″ |
| Brightness | 800 nits |
| Resolution | 800 x 600 |
| Touch | Resistive Touch |
System Specification
| Processor | Intel Core i5-5200U Turbo max up to 2.6GHz |
| Memory | 4GB SODIMM DDR3L-1600, (Max 8GB) |
| Storage | 64GB mSATA MLC SSD, (Max 512GB) |
Wireless Communication
| WLAN | 802.11 a/b/g/n |
| Bluetooth | Bluetooth 4.0 + Class I |
| WWAN | 3G – Sierra MC8090 (optional), 4G/LTE- Sierra MC7355/ Gobi5000 (optional), Sierra MC7305 / Gobi5000 (optional) |
| GPS | u-Blox Neo-6Q |
I/O Connectors
| Audio | Built-in 1W Speaker |
| External I/O | 2 x USB3.0, 1 x Audio Combo Conn. (Mic in or Line Out), 1 x SD card Slot, 1 x SIM card Slot, 1 x Power Jack, 1 x RS232/422/485(set by jumper), 1 x RJ-45 |
In front Control
| Control Button | 1 x Power, 1 x Menu, 3 x Function Key, 2 x Brightness control key |
| LED indicator | Power, Battery, HDD, RF |
Mechanical and Environment
| Dimensions (W x L x H) | 266 x 220 x 50.5 mm |
| Net Weight (kg) | 2.39kg |
| Operating Temperature | -20°C to 60°C (AC Mode), -10°C to 50°C ( Battery Mode ) |
| IP Proof | IP54 |
| Operating Humidity | 10 % ~ 90% (non condensing) |
| Certifications | CE, FCC |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft to concrete |
Power Management
| Power Input | 19V DC |
| Battery | 11.1V, 5200 mAh Lithium-Ion Battery (6cells) |
| Adapter | 100-240V, 50-60Hz / 19V DC |
| Battery Operating Time | up to 5 hours (by Battery Mark Version 4.0.1) |
Product Specification
| OS | Windows 10 loT enterprise Windows Embedded – 8.1 Industry Windows 7 Pro Embedded (64 bit) |
- *The weight information is for reference purpose.The actual weight will vary according to then options you choose,for example,the touch/glass option.
- *With BatteryMon Test Program under Power Saving Mode.
- Note: All Specifications are subject to change without prior notice!
*If you use SBC on-board RS485, you need to set appropriate state of RTS line before sending/receiving data in your software program.We offer additional board that can perform auto-direction hardware function.
**Note: Measured at dimming LCD brightness. Varies depending on the usage conditions, or when an external device is attached.
